HydraFEEDER®
Available in 1200 lb. and 1800 lb. Capacities (based on rolled corn)
for Efficient Bunk or Range Supplement Feeding
Hydraulic or Electric Driven Supplement Feeder

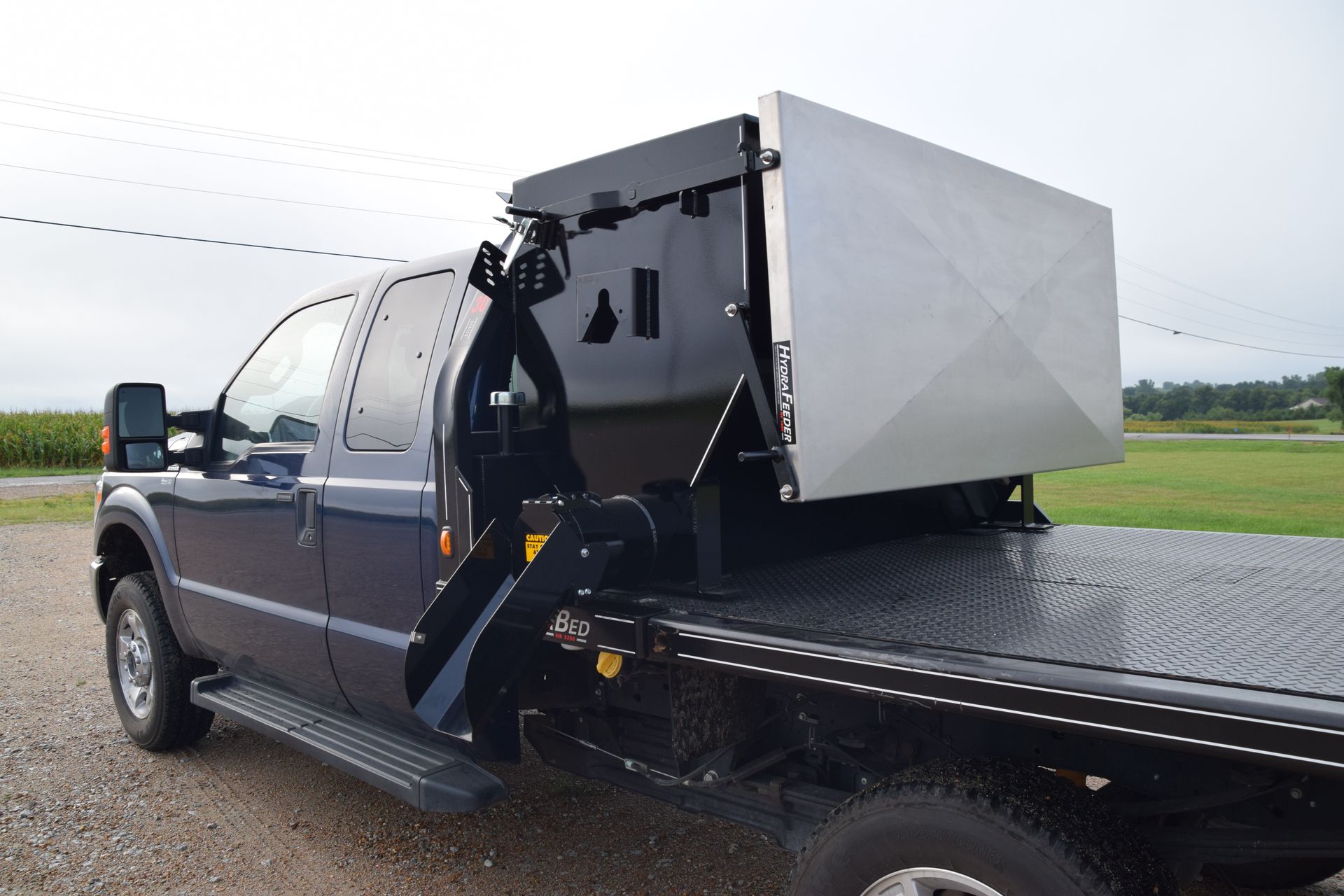

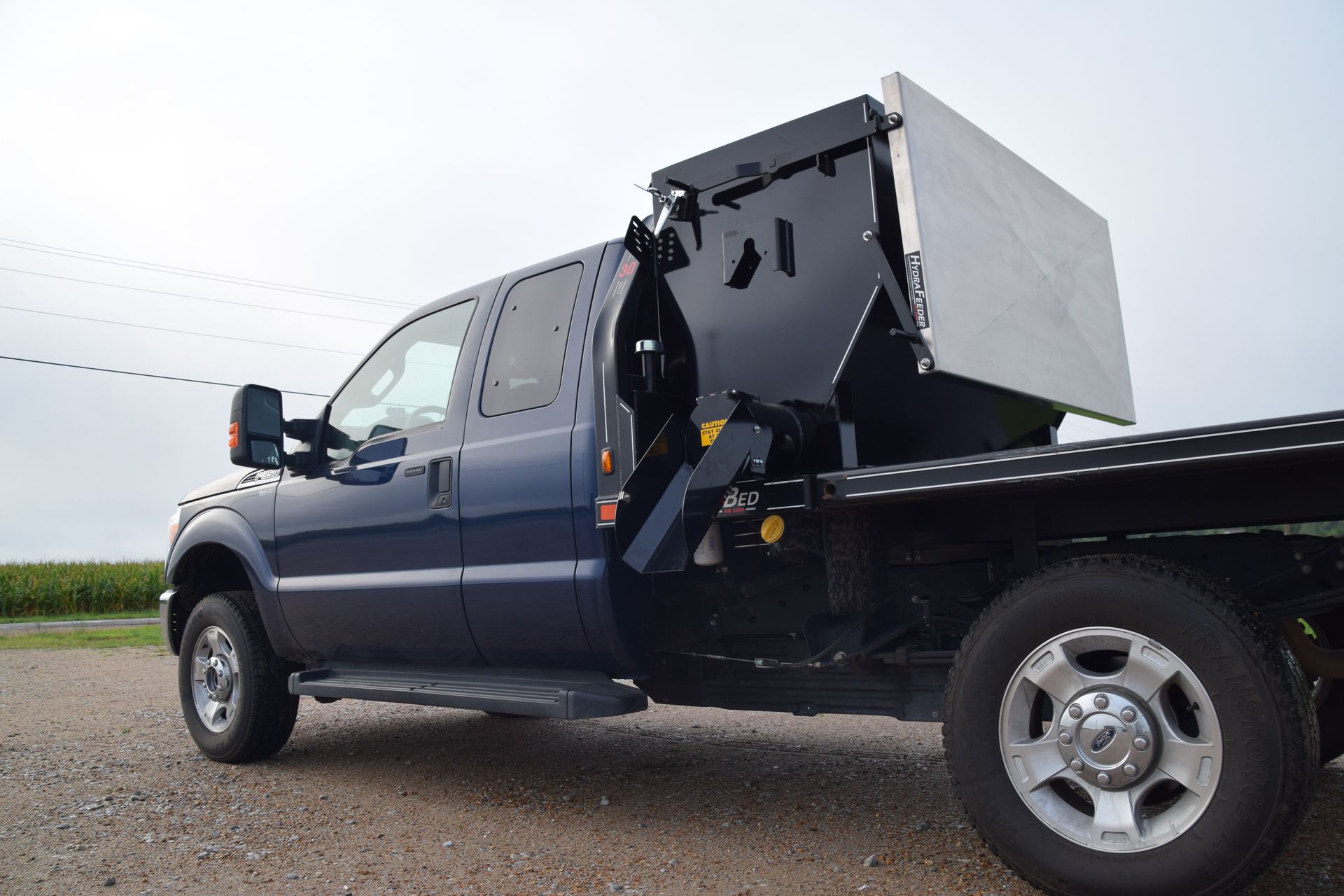

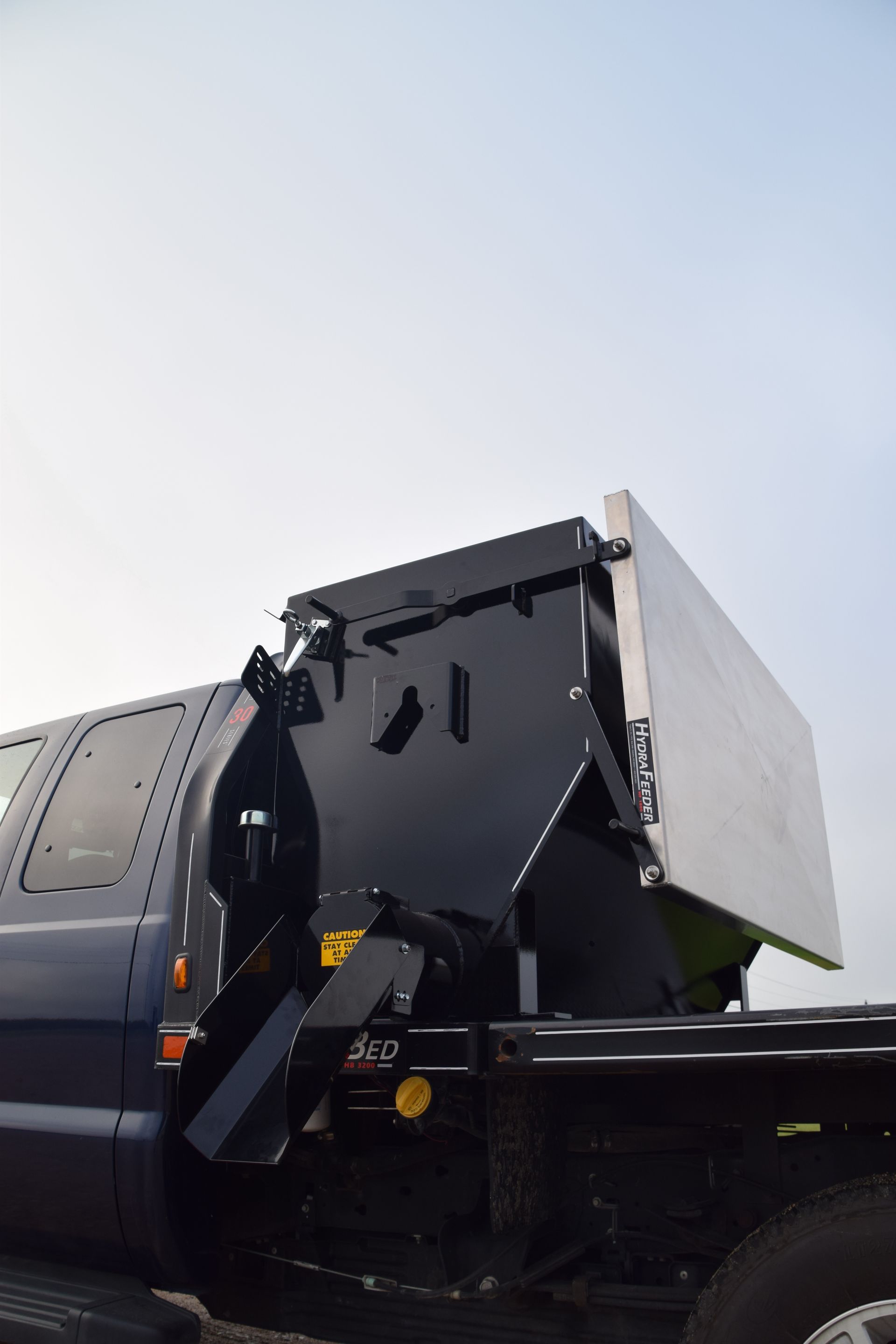

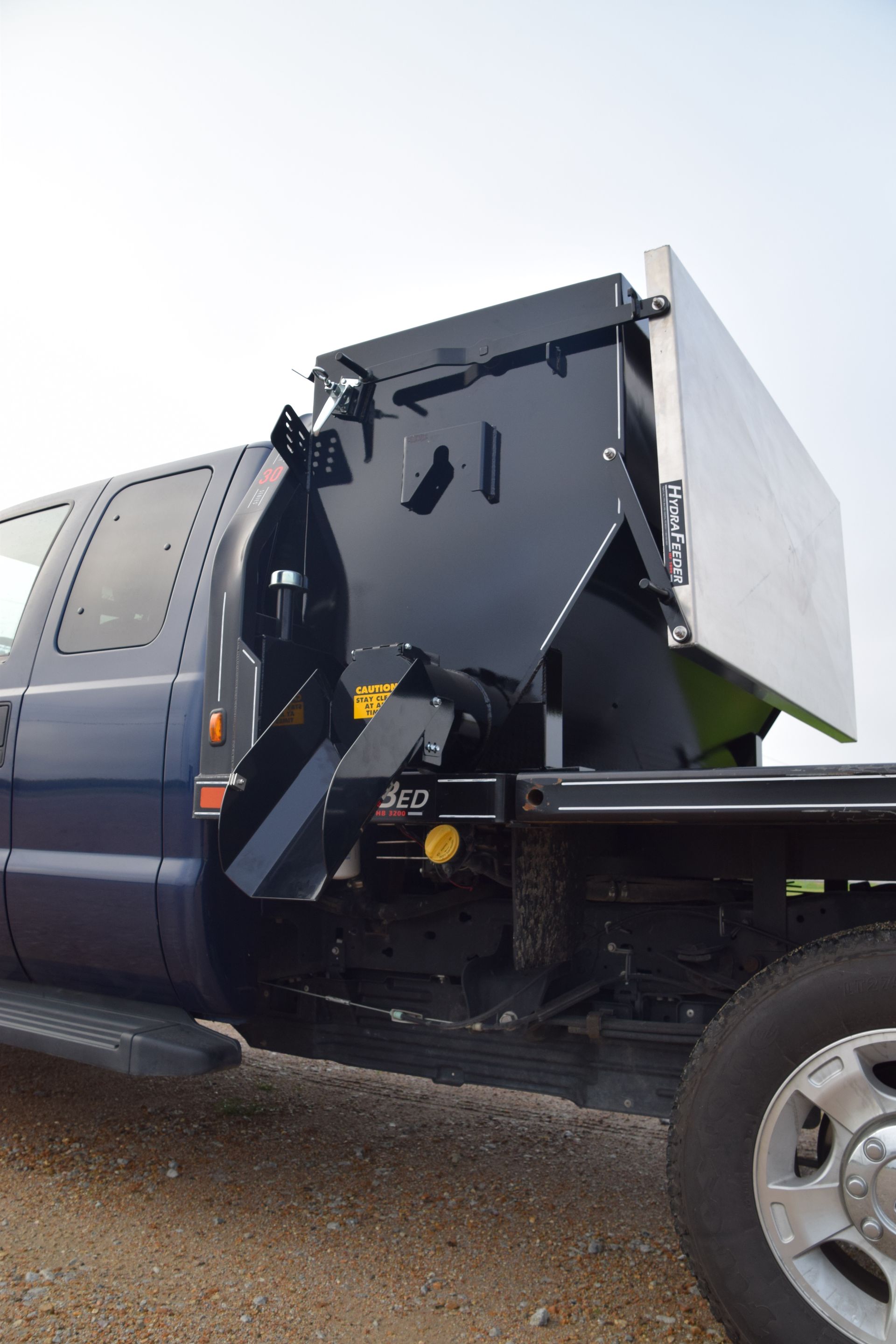

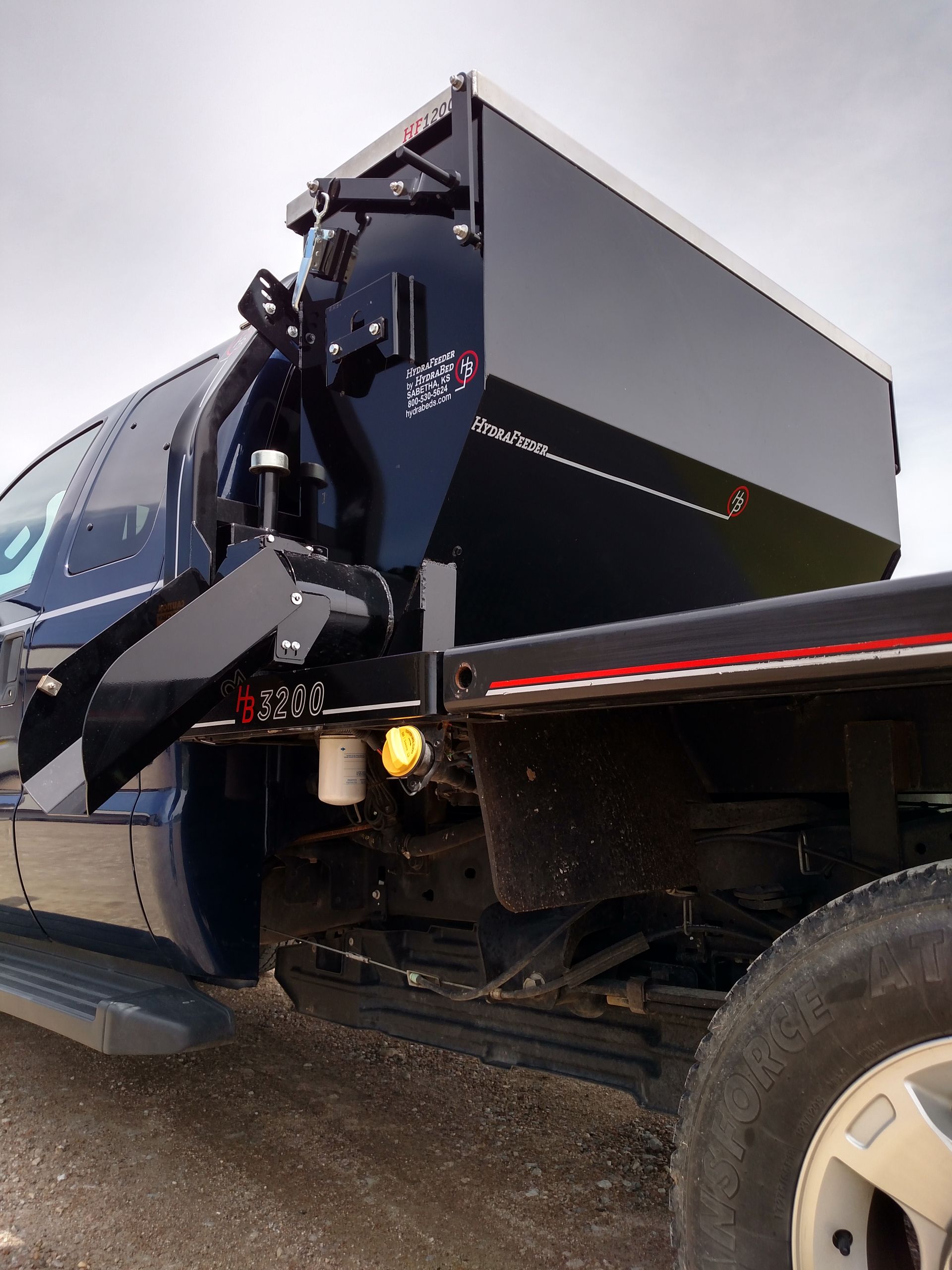

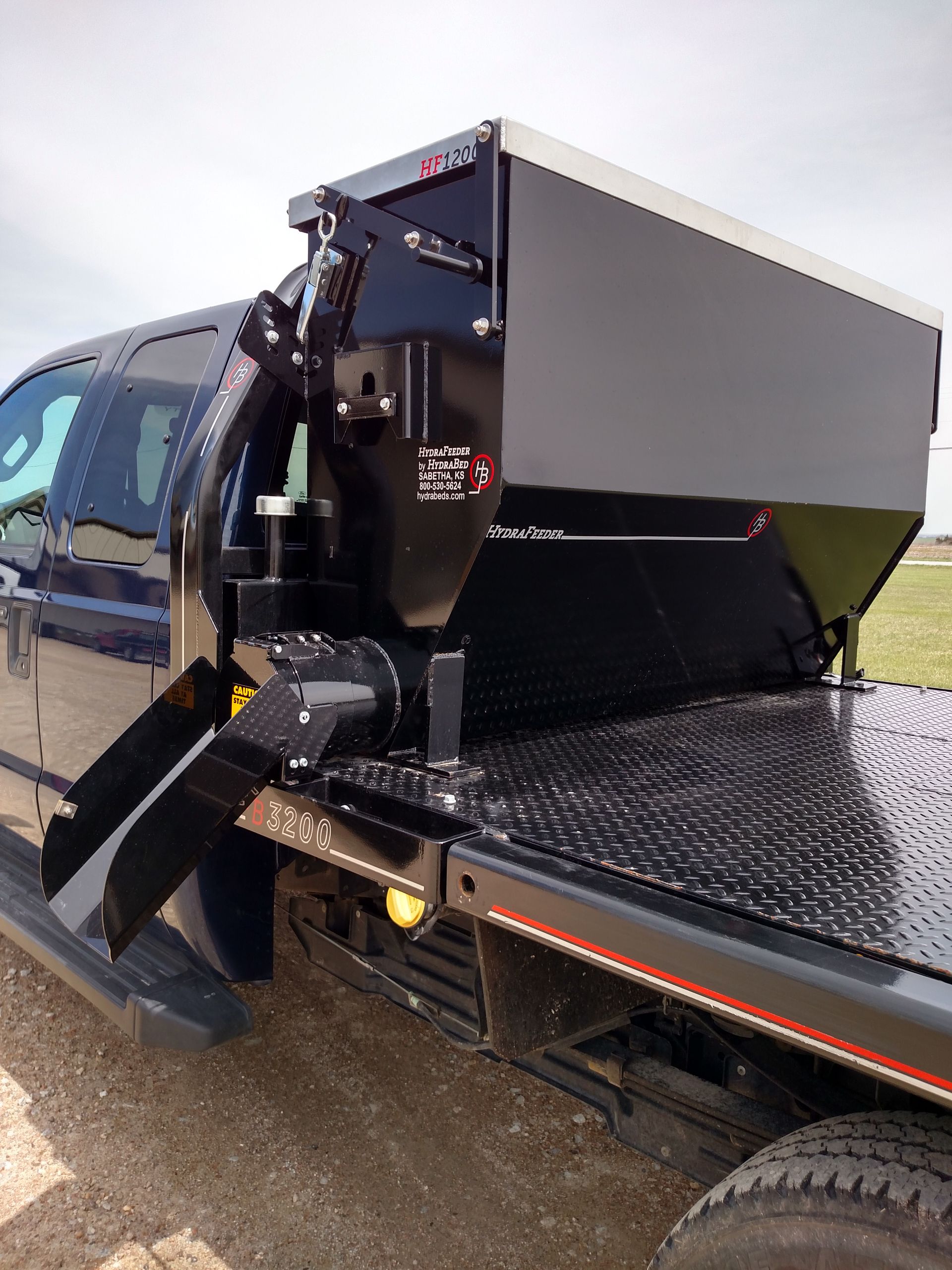

The HydraFeeder® beltless, chainless direct drive system provides simple, dependable feed discharge. The hydraulic or electric power source is directly coupled to the 8” discharge auger. With minimal feed damage, the unit can discharge up to 9 lbs. per second of shelled corn (at engine idle for hydraulic feeder). The HydraFeeder® is designed to be loaded onto and unloaded from the HydraBed® by the bale handling arms. The unit can also be used on a three-point tractor mount or Triple C’s HydraTM2000™ and powered by the tractor hydraulic system. Available in two sizes.
2 YEAR
SYSTEM
WARRANTY
5 YEAR
STRUCTURAL
WARRANTY
FEATURES
Lid: 10 gauge aluminum, ground operated, full opening hinge-over lid, stainless steel hinges
Drive: Direct Mount Hydraulic or Electric Motor
Delivery: 8” Auger (variable speed & reversible with hydraulic motor)
Metering: Back-lit, In-cab, Programmable Digital Counter
Construction:
12 gauge steel
SPECIFICATIONS
| HF 1200 | HF 1800 | |
|---|---|---|
| Approx. Capacity | 19.5 bu / 25 cu. ft. | 28.5 bu / 38 cu. ft. |
| Dimensions | 40” H x 66” W | 40” H x 66” W |
| Front to Back | 20” | 31” |
| Empty Weight | 403 lbs. | 476 lbs. |
DRIVE OPTIONS
HYDRAULIC
The HydraFeeder® hydraulic drive is a direct mount hydraulic motor. It is reversible and variable speed, higher flows will produce proportionally higher auger RPMs. Back-lit programmable display counter is standard equipment (mounts in-cab). The 3rd spool valve is required for the hydraulic drive motor
ELECTRIC
The HydraFeeder® electric drive motor powers the auger at 85 RPM. An external switch located at the discharge tube provides easy bucket filling. Back-lit programmable display counter is standard equipment (mounts in-cab).
