HydraFLKR™
SELF-LOADING LARGE SQUARE BALE FEEDING ATTACHMENT
Designed for controlled, single-operator feeding, the HydraFLKR™ mounts to your HydraBed® and hydraulically separates large square bales into consistent flakes. Its innovative finger mechanism helps preserve leaf integrity while delivering measured, repeatable feeding performance in daily ranch operations.
Square Bale Handling & Feeding

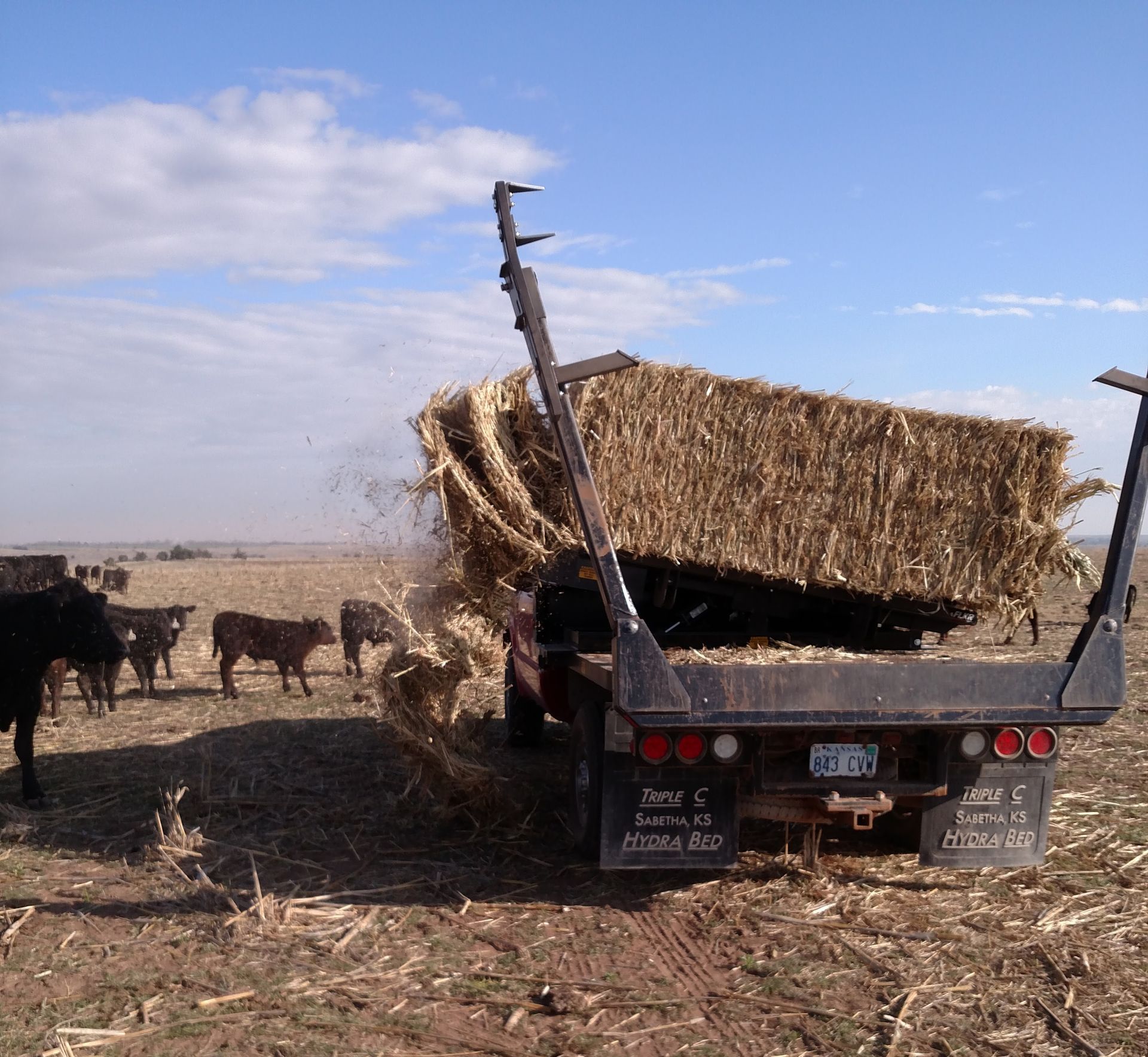

The HydraFLKR™ is a large square bale feeder designed for single-operator use, greatly reducing costs and risk of injury. After bales are loaded, utilizing the proven hydraulics of the HydraBed®, the HydraFLKR™ separates flakes from each bale, then drops them onto the ground or feed aprons as well as into bunks, hay rings or tire feeders. The operator controls the rate at which each bale is processed.
To minimize leaf loss, flake separation is accomplished by utilizing an innovative retracting finger mechanism. The hydraulic bale ramping function helps control premature flake drop. The bale advance design provides operator determined incremental feeding rates.
The HydraFLKR™hydraulic bale flaker is powered by the HydraBed® hydraulic system and is controlled from the driver’s seat.

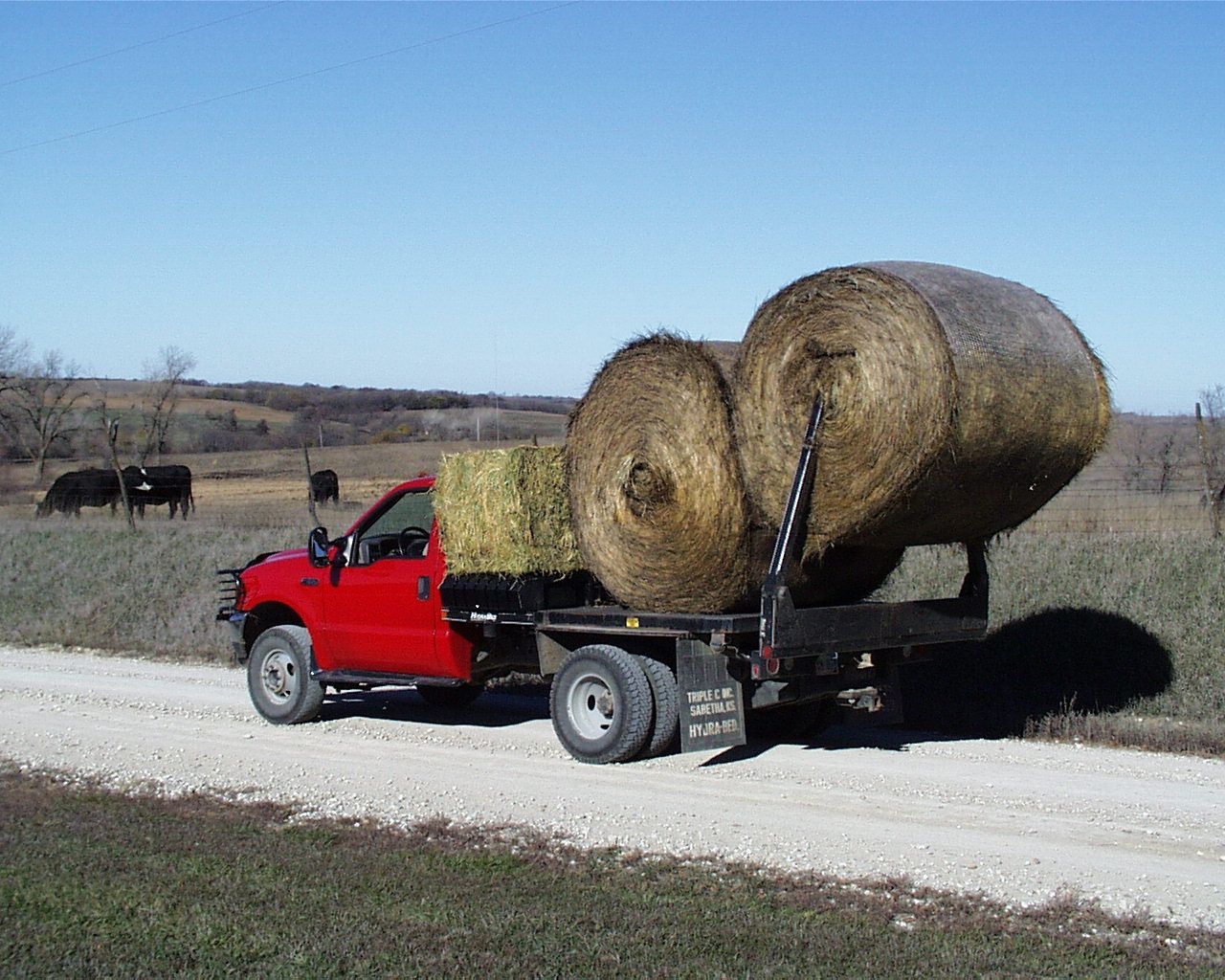

The HydraFLKR™ is easily and quickly installed on most HydraBed® models and can be removed in minutes when the feeding season is completed. The HydraBed® arms can be equipped with bale engagement attachments to securely grip and load bales onto the HydraFLKR™. A second bale may be carried in the arms during transport and feeding. The unit may also be loaded by a tractor loader or other suitable equipment.
Note: HydraBed® bale engagement attachments require approximately 10" of clearance between bale tier ends for successful retrieval from stacks.
FEATURES
- Hand-held pendant controls FLAKE, PUSH & RAMP functions
- Driver’s side discharge
- Dispenses individual or groups of flakes (dependent on bale conditions) in bunks, along feed aprons or on the ground
- Separates flakes with innovative lifting action designed to minimize leaf loss
- Hydraulic platform ramping assists with flake drop rate
- Self-loading when installed on HydraBed® equipped trucks
- Handles square bale sizes 3×3, 3×4 or 4×4, weighing up to 2,500 lbs
- Easy mounting and removal
- Capable of use with other power sources (contact factory)
Warranty Coverage
Backed by HydraBed’s industry-leading warranty, the HydraFLKR™ square bale flaker is built for long-term reliability and dependable performance in demanding feeding operations.
2 YEAR
SYSTEM
WARRANTY
5 YEAR
STRUCTURAL
WARRANTY
HydraFLKR™ FAQs
What is the HydraFLKR™ square bale flaker designed to do?
The HydraFLKR™ is a hydraulic square bale feeder attachment. When paired with the HydraFLKR™, your HydraBed® becomes a fully integrated truck bed bale feeder for large square bale operations
It allows a single operator to safely and efficiently process large square bales by separating flakes and dispensing them onto the ground, feed aprons, bunks, hay rings, or tire feeders.
What square bale sizes and weights can the HydraFLKR™ handle?
The HydraFLKR™ square bale flaker handles standard configurations used in ranch and livestock feeding operations, including:
- 3×3
- 3×4
- 4×4
It can accommodate bale weights up to approximately 2,500 lbs.
How does the HydraFLKR™ control flake separation and feeding rates?
Flake separation and feed rate control are achieved through:
- A retracting finger mechanism that separates individual flakes
- Hydraulic bale ramping that helps manage flake drop
- An operator-controlled bale advance system that provides incremental feeding rates
These functions allow the operator to control how quickly flakes are dispensed.
How does the HydraFLKR™ reduce leaf loss during feeding?
The HydraFLKR™ truck bed bale flaker uses an innovative lifting and retracting finger mechanism to separate flakes with controlled movement. Its design minimizes excessive agitation and helps reduce leaf loss during the feeding process.
How is the HydraFLKR™ powered and controlled during operation?
The HydraFLKR™ is powered by the HydraBed® hydraulic system. It is controlled from the driver’s seat using a hand-held pendant that manages FLAKE, PUSH, and RAMP functions.
The integrated hydraulic design eliminates the need for separate power sources and allows the operator to control all primary functions directly from the cab.
Can the HydraFLKR™ be installed and removed easily from a HydraBed®?
Yes. The HydraFLKR™ is designed for quick installation on most HydraBed® models and can be removed in minutes when the feeding season is complete. This frees up your HydraBed® for other tasks.
How can producers purchase the HydraFLKR™?
The HydraFLKR™ is available through authorized HydraBed dealers. Use our Dealer Locator to find one near you. You may also reach out to the Hydrabed customer support team for assistance.
