Hydraf8r™

Integrated Hydraulic Figure 8 Unit

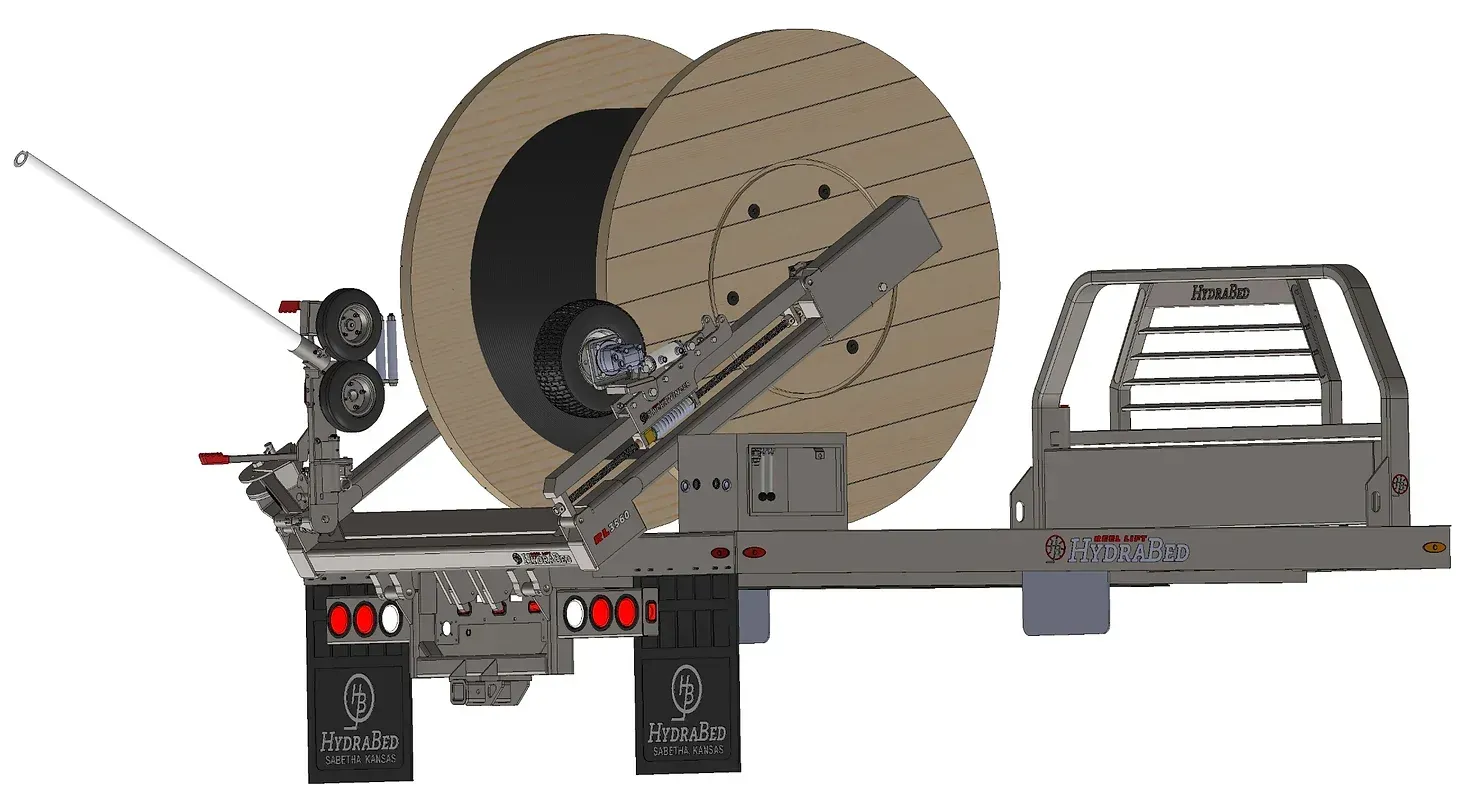

The patented HydraF8R™, specifically engineered for the RL Series HydraBed, is an integrated hydraulic figure-8 cable handler designed to deliver smooth, controlled fiber optic cable payout. Built with telecom crews efficiency and safety in mind, it assists in the figure 8 process by reducing the manpower requirement to as little as one person.

F8R Braking

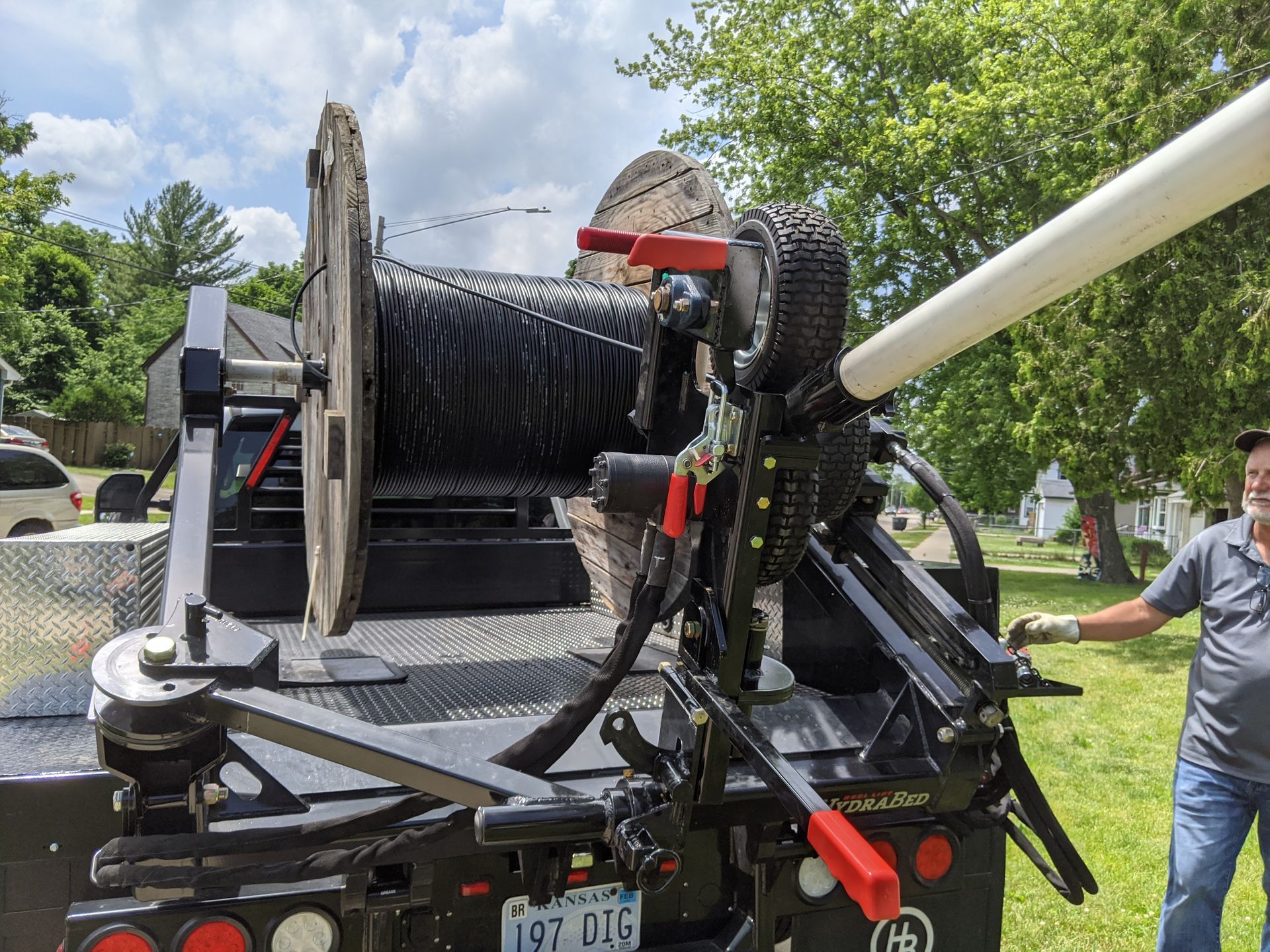

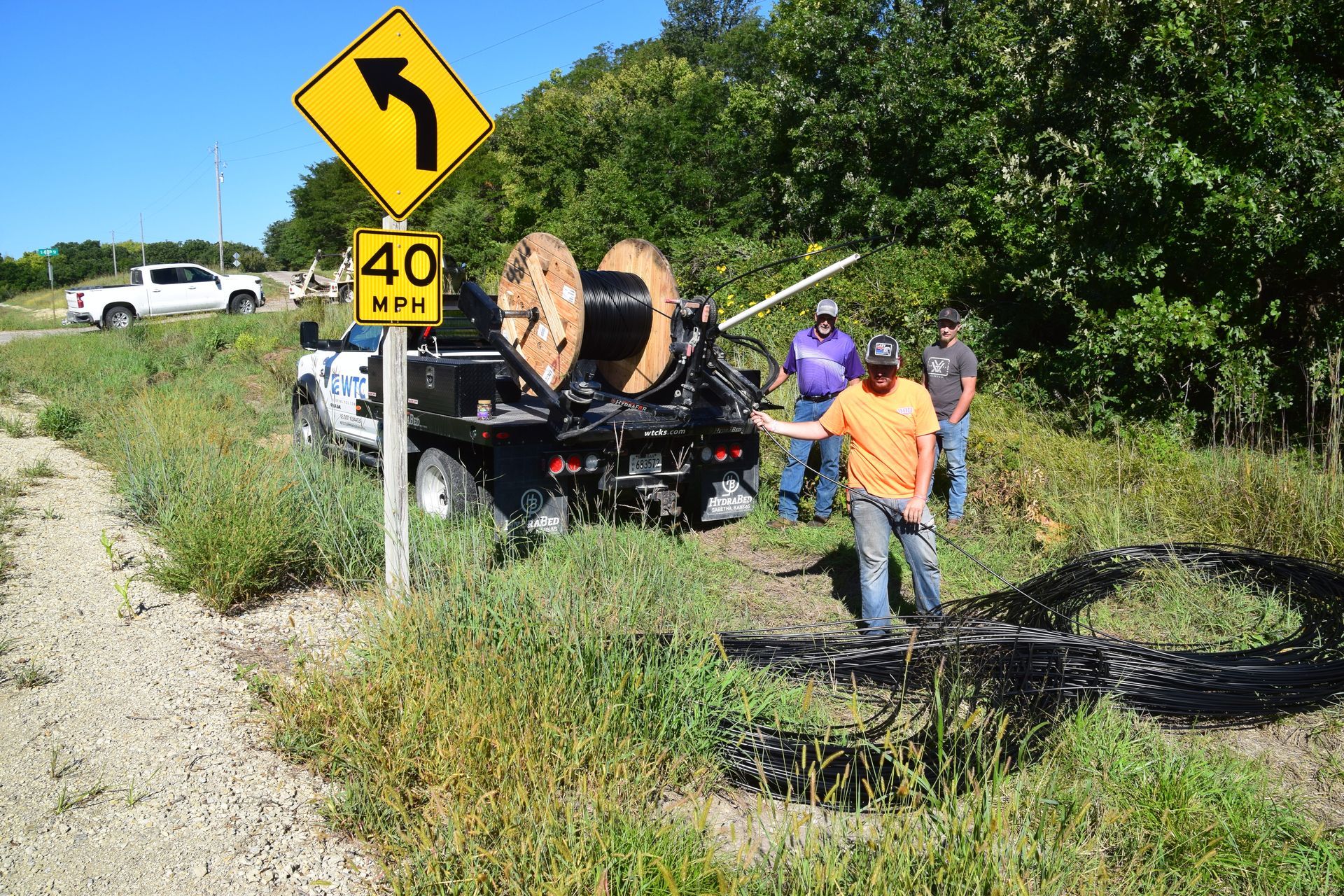

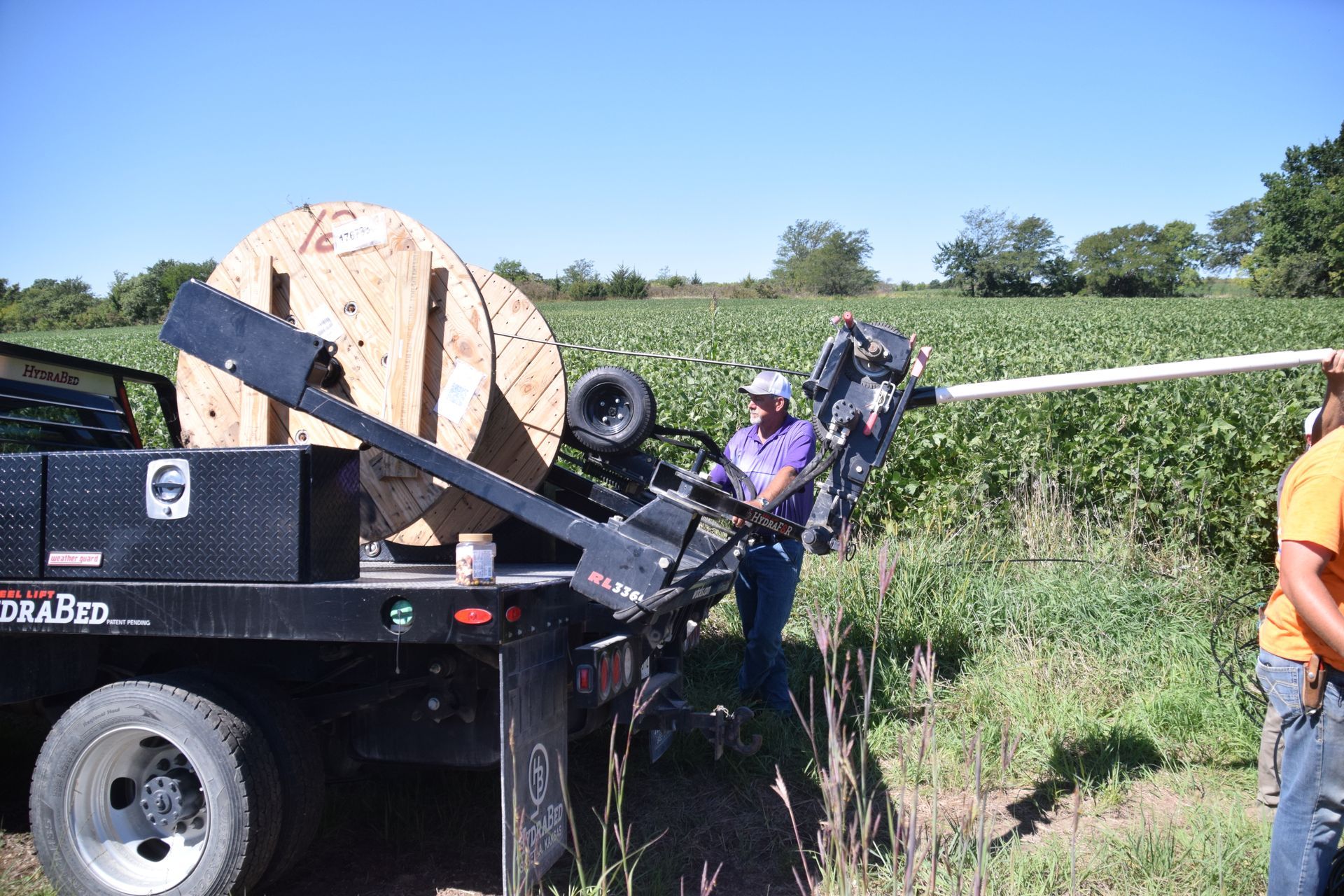

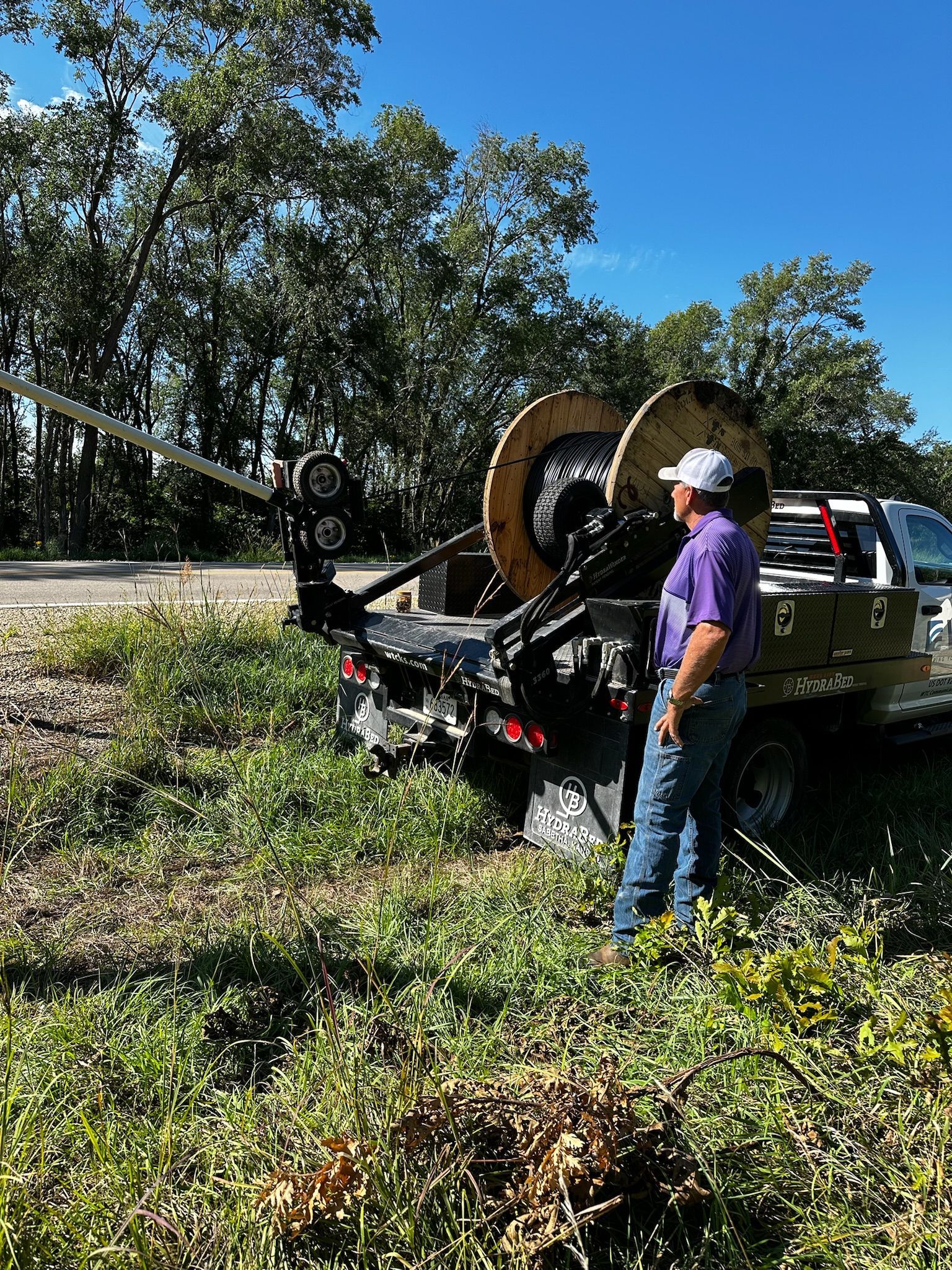

F8R in Action

Precision Figure-8 Cable Handling for Utility Crews

The patented HydraF8R™ is engineered to simplify fiber optic cable handling in the field. By using a controlled figure-8 payout pattern, the system minimizes twist, reduces cable entanglement, and achieves clean, consistent deployment. This makes it an ideal solution for contractors working with fiber optic, communications, and other sensitive utility cables.

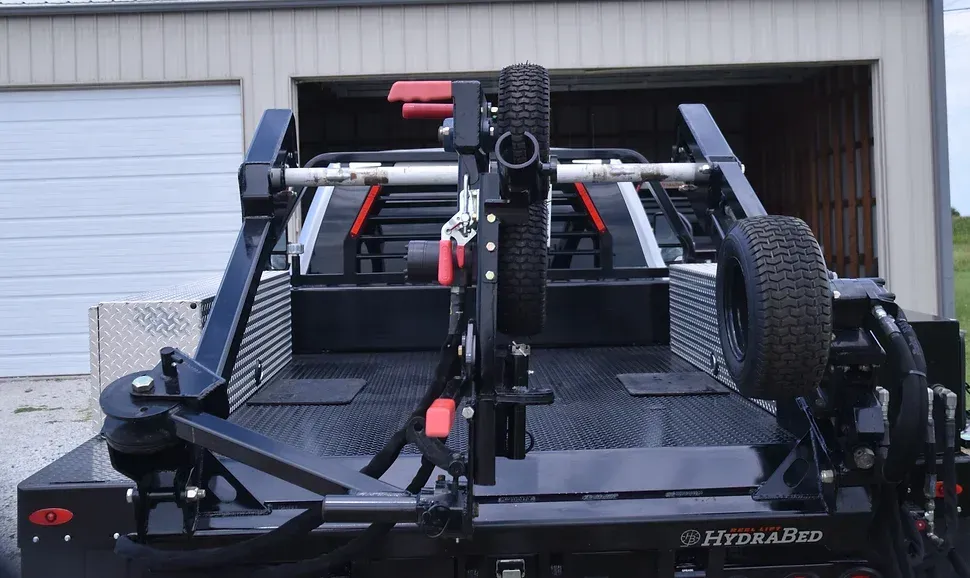

Mounted directly to the driver side lifting arm of the RL Series HydraBed and powered by the vehicle’s PTO or clutch pump hydraulic system, the HydraF8R™ eliminates the need for manual payout methods or separate fiber optic cable handling equipment. The result is faster setup and greater control during payout and retrieval. The HydraF8R™ helps maintain cable integrity while improving efficiency, safety and organization.

Find a Dealer

Warranty Coverage

The HydraF8R™ is backed by HydraBed’s proven warranty protection, including a two-year hydraulic and electrical system warranty and a five-year structural warranty. We guarantee the long-term performance and durability of our equipment.

2 YEAR

SYSTEM
WARRANTY

5 YEAR

STRUCTURAL
WARRANTY

Key features

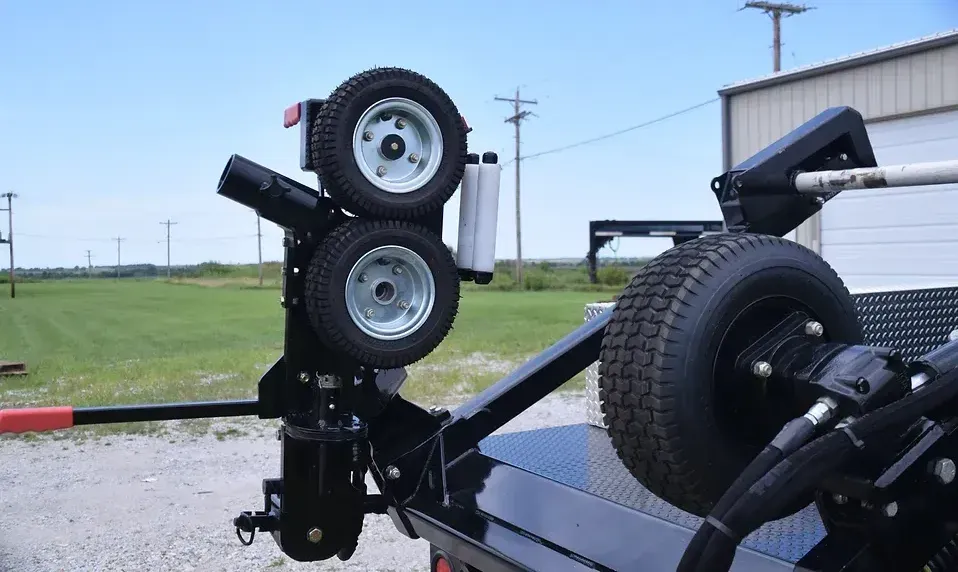

  • Integrated hydraulic drive for smooth, controlled payout
  • Figure-8 payout design to protect sensitive fiber optic cable
  • Stowable, truck-bed mounted configuration designed to reduce labor and improve safety
  • Heavy-duty construction built for utility and telecom environments
  • Compatible with RL Series HydraBed PTO or clutch pump hydraulic systems

Brake engaged

HydraF8R™ FAQs

  • What is the HydraF8R™ hydraulic fiber optic cable handler?

    The HydraF8R™ is a hydraulic, truck-mounted figure-8 cable handling unit designed to manage fiber optic and utility cable payout safely and efficiently.


  • How does the HydraF8R™ control fiber payout and protect sensitive fiber cable?

    Its figure-8 payout method reduces twisting and stress, helping maintain proper cable alignment and prevent damage during deployment.


  • What cable types, reel sizes, or fiber applications is the HydraF8R™ designed for?

    The fiber optic cable winder can be used for fiber optic and utility cables, ranging from ¼” to 1-⅞” diameter, commonly used in telecom, communications, and underground installations.


  • How is the HydraF8R™ integrated with a HydraBed hydraulic system?

    This system connects directly to the truck’s hydraulic power source. We have designed it to connect through an existing RL Series HydraBed hydraulic setup.


  • What features help improve safety and consistency during fiber handling?

    Hydraulic control, reduced manual handling, and consistent payout patterns all contribute to safer, more predictable operation.


  • Is the HydraF8R™ suited for fiber installation, utility, and underground crews?

    Yes. It is designed specifically for contractors and crews working in fiber, utility, and underground environments.


  • How can contractors purchase the HydraF8R™, find a dealer, or contact HydraBed directly?

    Contractors can contact HydraBed directly or work with an authorized dealer for inquiries or to place an order.
